INA SN105-B
Needle Roller Bearings

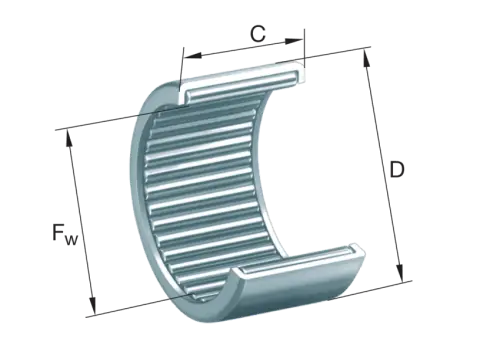

Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

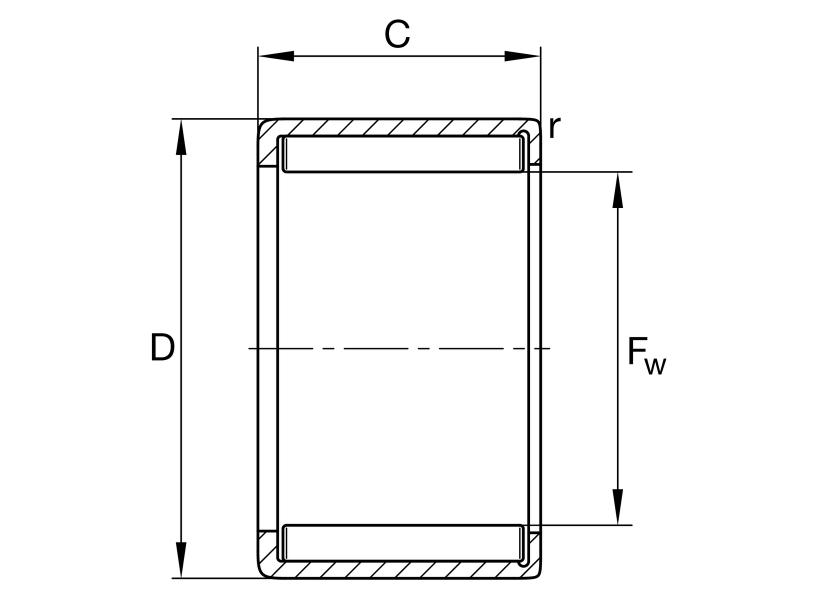

Main Dimensions & Performance Data
Fw
15.875 mm
Under roller diameter
D
20.638 mm
Outside diameter
C
7.938 mm
Width, outer ring
Cr
7,400 N
Basic dynamic load rating, radial
C0r
12,400 N
Basic static load rating, radial
Cur
1,620 N
Fatigue load limit, radial
nG Grease
6,800 1/min
Limiting speed for grease lubrication
≈m
6.65 g
Weight
