INA SN116-B
Needle Roller Bearings

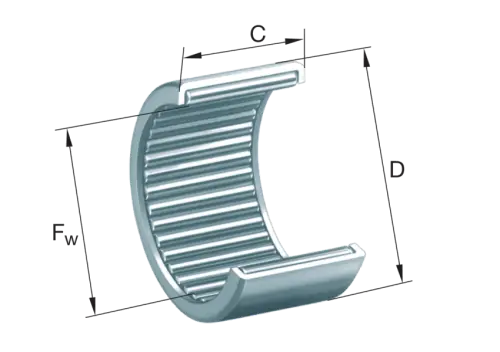

Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

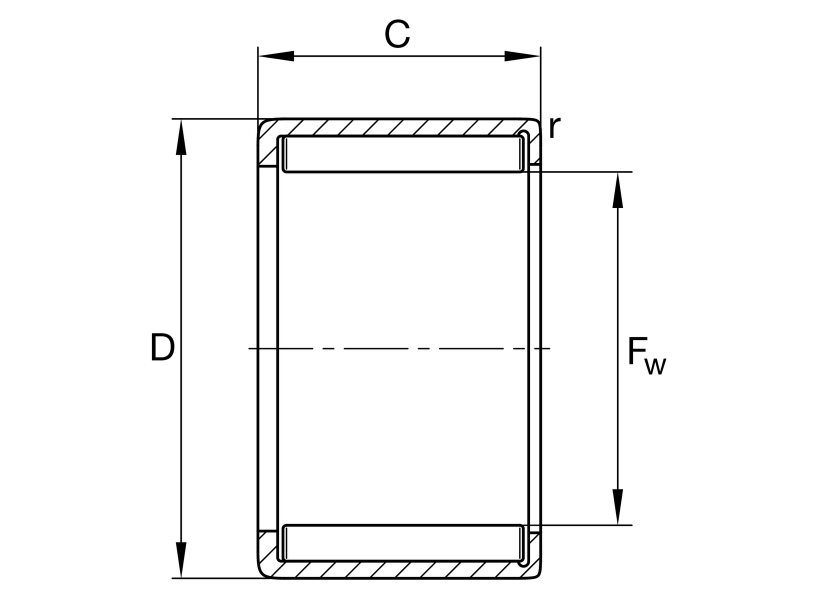

Main Dimensions & Performance Data
Fw
17.462 mm
Under roller diameter
D
22.225 mm
Outside diameter
C
9.525 mm
Width, outer ring
Cr
9,300 N
Basic dynamic load rating, radial
C0r
17,100 N
Basic static load rating, radial
Cur
2,360 N
Fatigue load limit, radial
nG Grease
6,300 1/min
Limiting speed for grease lubrication
≈m
8.53 g
Weight
