INA SN2020
Needle Roller Bearings

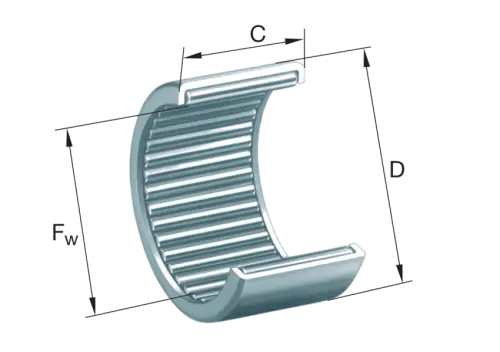

Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

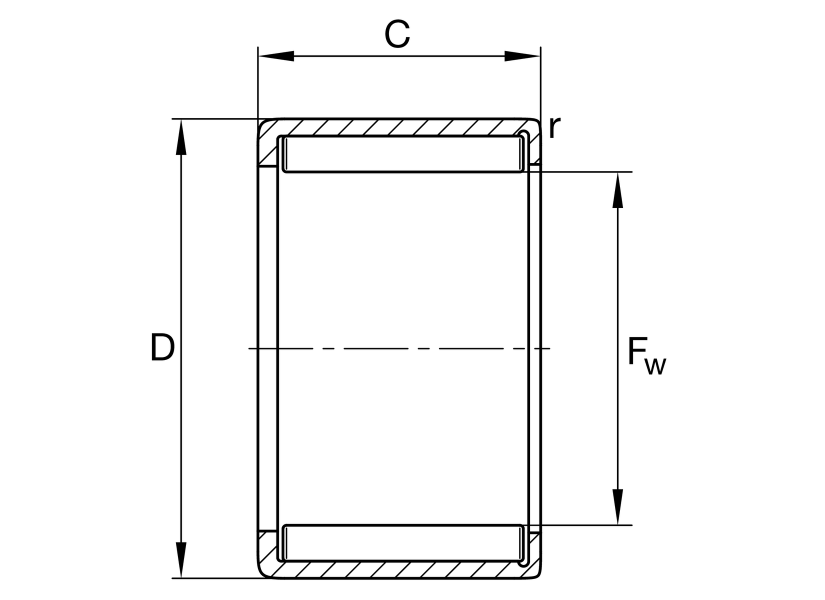

Main Dimensions & Performance Data
Fw
31.75 mm
Under roller diameter
D
38.1 mm
Outside diameter
C
31.65 mm
Width, outer ring
Cr
47,000 N
Basic dynamic load rating, radial
C0r
129,000 N
Basic static load rating, radial
Cur
19,000 N
Fatigue load limit, radial
nG Grease
3,500 1/min
Limiting speed for grease lubrication
≈m
71.04 g
Weight
