INA SX011828-A-VSP+PRL50

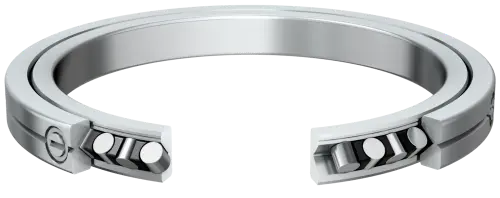

Crossed Roller Bearing
Crossed roller bearingsdimension series 18 to DIN 616
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d1
140 mm
Bore Diameter
0.004 mm
Bore diameter upper tolerance
-0.021 mm
Bore diameter lower tolerance
Da
175 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.025 mm
Outside diameter lower tolerance
H
18 mm
Height of the assembled bearing
hi
18 mm
Heigth inner ring
0.06 mm
Width upper tolerance
-0.06 mm
Width lower tolerance
≈m
1.095 kg
Weight
