INA ZKLFA1563-2RS
Axial-Super Precision Bearings
Angular contact ball bearing units ZKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

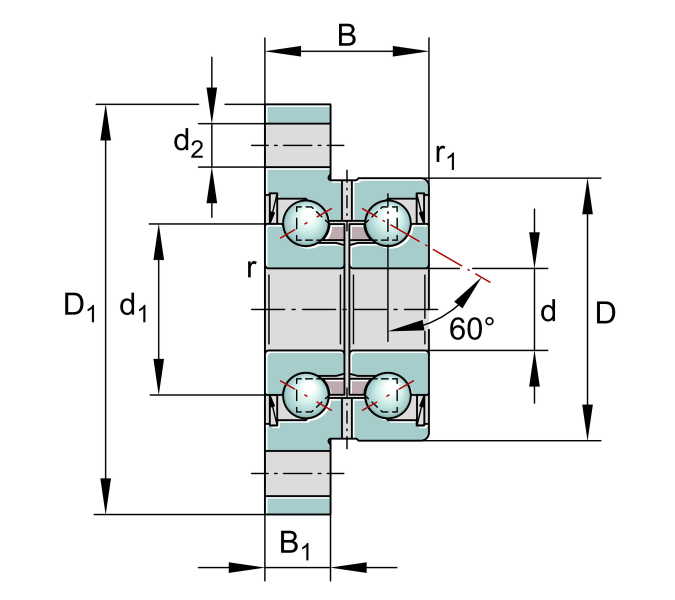

Main Dimensions & Performance Data
d
15 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
42 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
25 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
18,000 N
Basic dynamic load rating, axial
C0a
28,500 N
Basic static load rating, axial
Cua
1,300 N
Fatigue load limit, axial
nG Grease
8,200 1/min
Limiting speed for grease lubrication
nϑ
3,500 1/min
Thermally permissible speed
≈m
0.259 kg
Weight

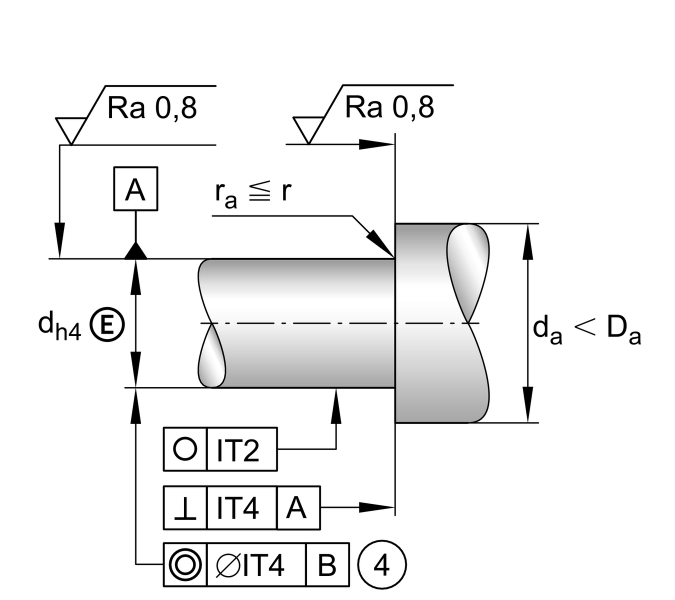

Mounting dimensions
da min
20 mm
Minimum diameter shaft shoulder
da max
34 mm
Maximum diameter of shaft shoulder
t1
0.1 mm
Position tolerance

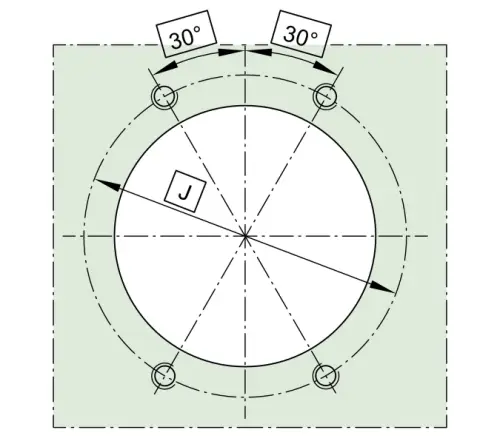

M6
Screw size
na
4
Number of screws
