Koyo 1201
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

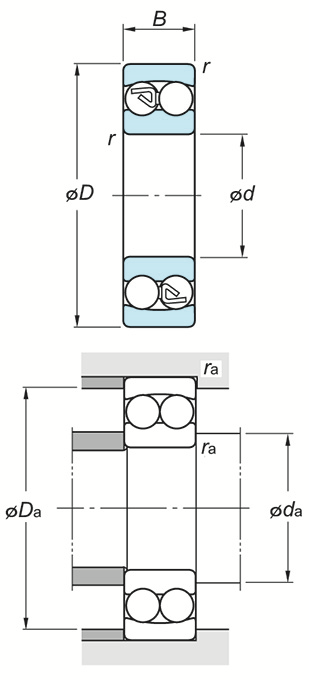

(Boundary dimensions ...etc)
d
12 mm
D
32 mm
B
10 mm
r(min.)
0.6 mm
Basic load ratings : Cr
7.00 kN
Basic load ratings : C0r
1.25 kN
Fatigue load limit : Cu
0.08 kN
Limiting speeds(Grease lub.)
21000 min-1
Limiting speeds(Oil lub.)
26000 min-1
Constant :e
0.33
Axial load factors : Y1
1.89
Axial load factors : Y2
2.93
Axial load factors : Y0
1.98
Mounting dimensions
da(min.)
16 mm
Da(max.)
28 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.040 kg
