Koyo 1208
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

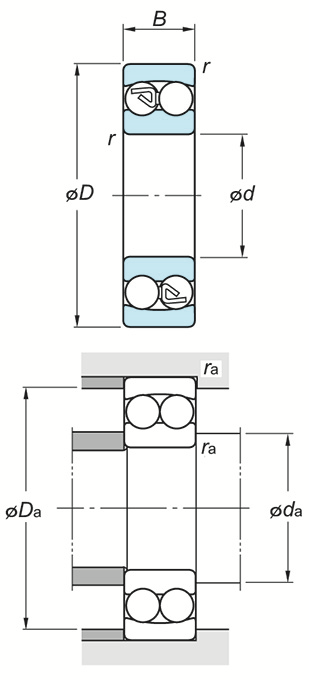

(Boundary dimensions ...etc)
d
40 mm
D
80 mm
B
18 mm
r(min.)
1.1 mm
Basic load ratings : Cr
24.1 kN
Basic load ratings : C0r
6.50 kN
Fatigue load limit : Cu
0.41 kN
Limiting speeds(Grease lub.)
7500 min-1
Limiting speeds(Oil lub.)
9200 min-1
Constant :e
0.22
Axial load factors : Y1
2.83
Axial load factors : Y2
4.38
Axial load factors : Y0
2.97
Mounting dimensions
da(min.)
46.5 mm
Da(max.)
73.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.417 kg
