Koyo 14116/274
(BRAND)：KOYO
(Availability)：In Stock
Specifications

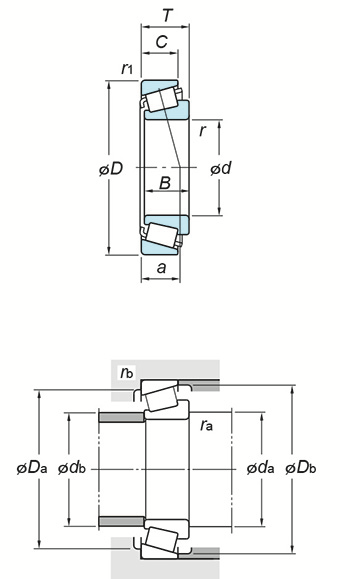

(Boundary dimensions ...etc)
d
30.226 mm
D
69.012 mm
T
19.845 mm
B
19.583 mm
C
15.875 mm
r(min.)
0.8 mm
r1(min.)
3.2 mm
Basic load ratings : Cr
57.7 kN
Basic load ratings : C0r
55.0 kN
Fatigue load limit : Cu
7.95 kN
Limiting speeds(Grease lub.)
5900 min-1
Limiting speeds(Oil lub.)
7800 min-1
Load center spread : a
15.5 mm
Constant :e
0.38
Axial load factors : Y1
1.57
Axial load factors : Y0
0.86
Mounting dimensions
da
37.0 mm
db
36.5 mm
Da
59.0 mm
Db
63.0 mm
ra(max.)
0.8 mm
rb(max.)
3.2 mm
Refer.
(Refer.)Mass
0.357 kg
