Koyo 14136A/276
(BRAND)：KOYO
(Availability)：In Stock
Specifications

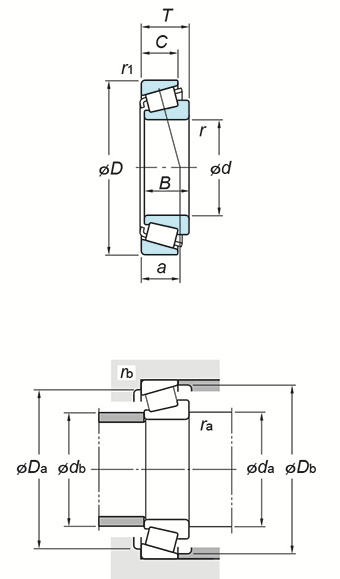

(Boundary dimensions ...etc)
d
34.925 mm
D
69.012 mm
T
26.982 mm
B
26.721 mm
C
15.875 mm
r(min.)
0.8 mm
r1(min.)
1.2 mm
Basic load ratings : Cr
57.7 kN
Basic load ratings : C0r
55.0 kN
Fatigue load limit : Cu
7.95 kN
Limiting speeds(Grease lub.)
5900 min-1
Limiting speeds(Oil lub.)
7800 min-1
Load center spread : a
22.6 mm
Constant :e
0.38
Axial load factors : Y1
1.57
Axial load factors : Y0
0.86
Mounting dimensions
da
40.0 mm
db
38.0 mm
Da
60.0 mm
Db
63.0 mm
ra(max.)
0.8 mm
rb(max.)
1.2 mm
Refer.
(Refer.)Mass
0.387 kg
