Koyo 16016
(BRAND)：KOYO
(Availability)：In Stock

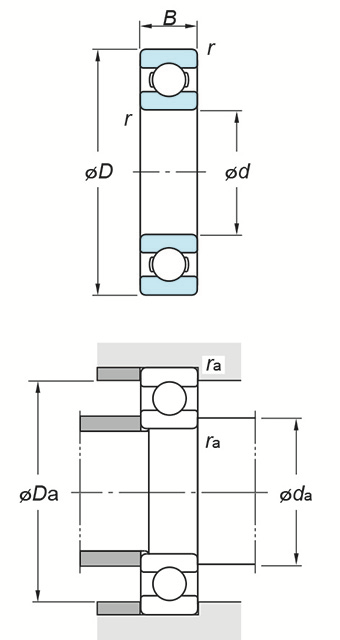

Specifications
(Boundary dimensions ...etc)
d
80 mm
D
125 mm
B
14 mm
r(min.)
0.6 mm
Basic load ratings : Cr
39.7 kN
Basic load ratings : C0r
29.7 kN
Fatigue load limit : Cu
1.50 kN
factor : f0
16.4
Limiting speeds(Grease lub.)
5200 min-1
Limiting speeds(Oil lub.)
6100 min-1
Mounting dimensions
da(min.)
84 mm
Da(max.)
121 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.597 kg
