Koyo 16017
(BRAND)：KOYO
(Availability)：In Stock

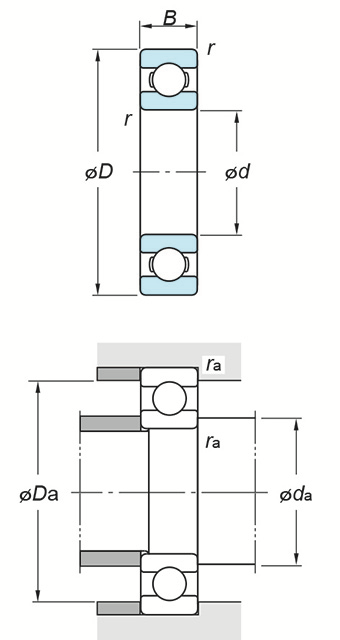

Specifications
(Boundary dimensions ...etc)
d
85 mm
D
130 mm
B
14 mm
r(min.)
0.6 mm
Basic load ratings : Cr
40.8 kN
Basic load ratings : C0r
31.7 kN
Fatigue load limit : Cu
1.55 kN
factor : f0
16.5
Limiting speeds(Grease lub.)
4900 min-1
Limiting speeds(Oil lub.)
5800 min-1
Mounting dimensions
da(min.)
89 mm
Da(max.)
126 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.626 kg
