Koyo 16018
(BRAND)：KOYO
(Availability)：In Stock
Specifications

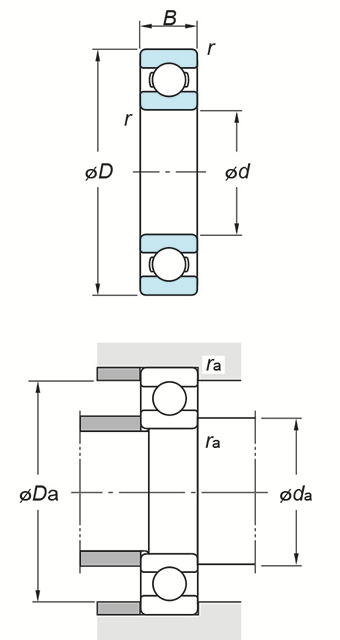

(Boundary dimensions ...etc)
d
90 mm
D
140 mm
B
16 mm
r(min.)
1 mm
Basic load ratings : Cr
49.9 kN
Basic load ratings : C0r
37.0 kN
Fatigue load limit : Cu
1.85 kN
factor : f0
16.3
Limiting speeds(Grease lub.)
4700 min-1
Limiting speeds(Oil lub.)
5600 min-1
Mounting dimensions
da(min.)
95 mm
Da(max.)
135 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.848 kg
