Koyo 16019
(BRAND)：KOYO
(Availability)：In Stock
Specifications

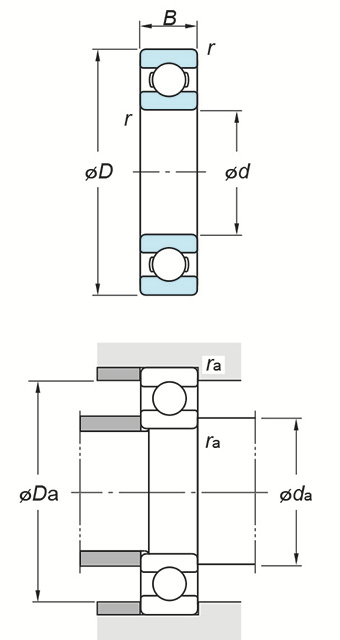

(Boundary dimensions ...etc)
d
95 mm
D
145 mm
B
16 mm
r(min.)
1 mm
Basic load ratings : Cr
51.5 kN
Basic load ratings : C0r
39.6 kN
Fatigue load limit : Cu
1.90 kN
factor : f0
16.4
Limiting speeds(Grease lub.)
4500 min-1
Limiting speeds(Oil lub.)
5300 min-1
Mounting dimensions
da(min.)
100 mm
Da(max.)
140 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.885 kg
