Koyo 16022
(BRAND)：KOYO
(Availability)：In Stock
Specifications

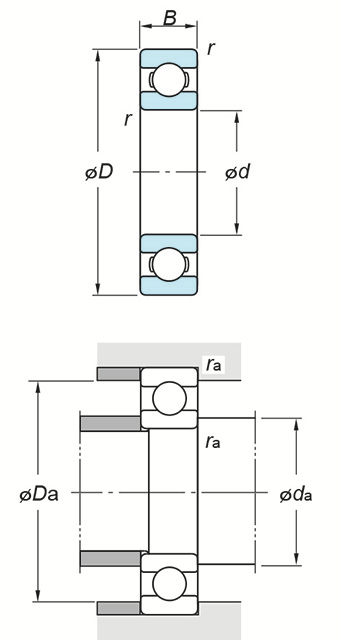

(Boundary dimensions ...etc)
d
110 mm
D
170 mm
B
19 mm
r(min.)
1 mm
Basic load ratings : Cr
71.8 kN
Basic load ratings : C0r
56.7 kN
Fatigue load limit : Cu
2.55 kN
factor : f0
16.3
Limiting speeds(Grease lub.)
3800 min-1
Limiting speeds(Oil lub.)
4500 min-1
Mounting dimensions
da(min.)
115 mm
Da(max.)
165 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
1.46 kg
