Koyo 2205
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

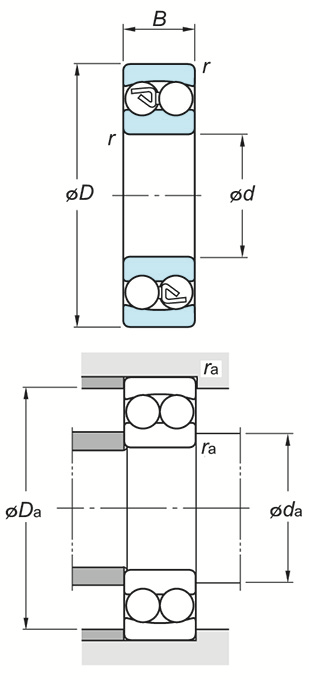

(Boundary dimensions ...etc)
d
25 mm
D
52 mm
B
18 mm
r(min.)
1 mm
Basic load ratings : Cr
15.7 kN
Basic load ratings : C0r
3.50 kN
Fatigue load limit : Cu
0.22 kN
Limiting speeds(Grease lub.)
12000 min-1
Limiting speeds(Oil lub.)
15000 min-1
Constant :e
0.40
Axial load factors : Y1
1.58
Axial load factors : Y2
2.45
Axial load factors : Y0
1.66
Mounting dimensions
da(min.)
30 mm
Da(max.)
47 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.163 kg
