Koyo 2207
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

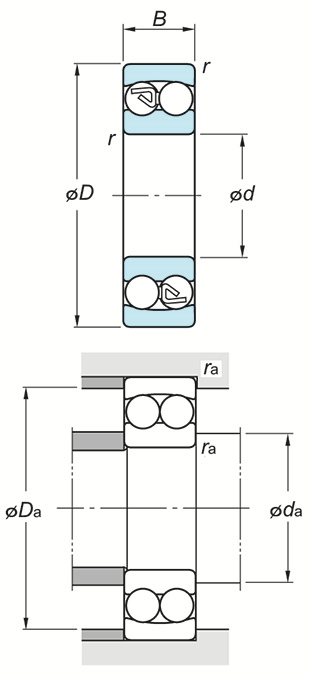

Specifications
(Boundary dimensions ...etc)
d
35 mm
D
72 mm
B
23 mm
r(min.)
1.1 mm
Basic load ratings : Cr
27.1 kN
Basic load ratings : C0r
6.65 kN
Fatigue load limit : Cu
0.42 kN
Limiting speeds(Grease lub.)
8500 min-1
Limiting speeds(Oil lub.)
10000 min-1
Constant :e
0.37
Axial load factors : Y1
1.71
Axial load factors : Y2
2.65
Axial load factors : Y0
1.79
Mounting dimensions
da(min.)
41.5 mm
Da(max.)
65.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.403 kg
