Koyo 2210
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

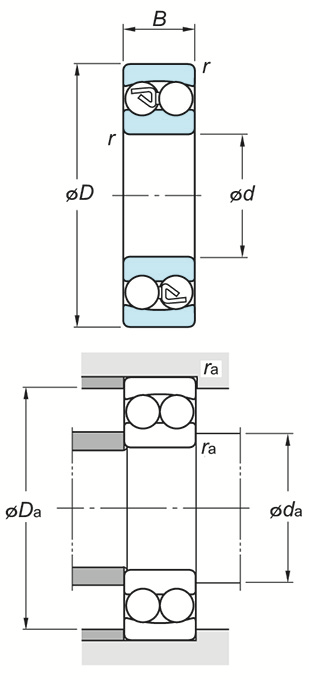

Specifications
(Boundary dimensions ...etc)
d
50 mm
D
90 mm
B
23 mm
r(min.)
1.1 mm
Basic load ratings : Cr
29.2 kN
Basic load ratings : C0r
8.50 kN
Fatigue load limit : Cu
0.53 kN
Limiting speeds(Grease lub.)
6500 min-1
Limiting speeds(Oil lub.)
7900 min-1
Constant :e
0.27
Axial load factors : Y1
2.33
Axial load factors : Y2
3.61
Axial load factors : Y0
2.45
Mounting dimensions
da(min.)
56.5 mm
Da(max.)
83.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.590 kg
