Koyo 22224RZK+H3124X
(BRAND)：KOYO
(Availability)：In Stock

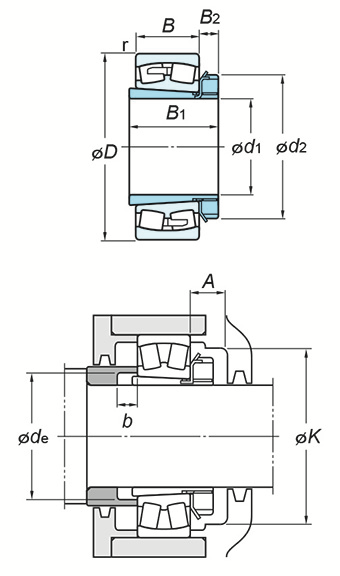

Specifications
(Boundary dimensions ...etc)
d1
110 mm
B1
88 mm
d2
155 mm
B2
22 mm
B3
- mm
d
120 mm
D
215 mm
B
58 mm
r(min.)
2.1 mm
Basic load ratings : Cr
706 kN
Basic load ratings : C0r
764 kN
Limiting speeds(Grease lub.)
2100 min-1
Limiting speeds(Oil lub.)
2800 min-1
Constant e
0.26
Axial load factors : Y1
2.60
Axial load factors : Y2
3.87
Axial load factors : Y0
2.54
Mounting dimensions
A(min.)
33 mm
K(min.)
180 mm
sde(min.)
128 mm
b(min.)
11 mm
Refer.
(Refer.)Mass
11.9 kg
