Koyo 22234RHAK+AH3134
(BRAND)：KOYO
(Availability)：In Stock
Specifications

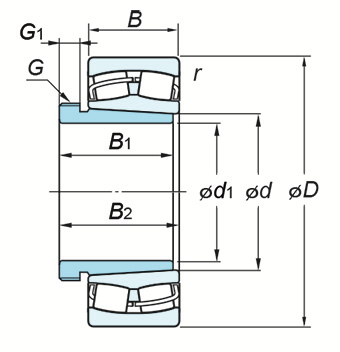

(Boundary dimensions ...etc)
d1
160 mm
B1
104 mm
B2
109 mm
G
M190�3 mm
G1
16 mm
d
170 mm
D
310 mm
B
86 mm
r(min.)
4 mm
Basic load ratings : Cr
1260 kN
Basic load ratings : C0r
1490 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1500 min-1
Constant e
0.28
Axial load factors : Y1
2.45
Axial load factors : Y2
3.64
Axial load factors : Y0
2.39
Mounting dimensions
Refer.
(Refer.)Mass
29.9 kg
