Koyo 22236RHAK+H3136
(BRAND)：KOYO
(Availability)：In Stock
Specifications

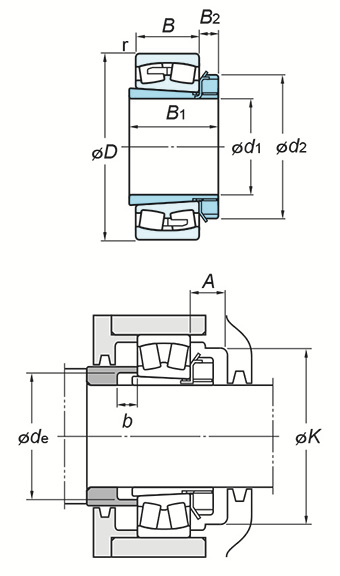

(Boundary dimensions ...etc)
d1
160 mm
B1
131 mm
d2
230 mm
B2
30 mm
B3
- mm
d
180 mm
D
320 mm
B
86 mm
r(min.)
4 mm
Basic load ratings : Cr
1320 kN
Basic load ratings : C0r
1610 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1400 min-1
Constant e
0.26
Axial load factors : Y1
2.55
Axial load factors : Y2
3.80
Axial load factors : Y0
2.50
Mounting dimensions
A(min.)
41 mm
K(min.)
260 mm
sde(min.)
191 mm
b(min.)
18 mm
Refer.
(Refer.)Mass
37.4 kg
