Koyo 22316RZK+H2316X
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

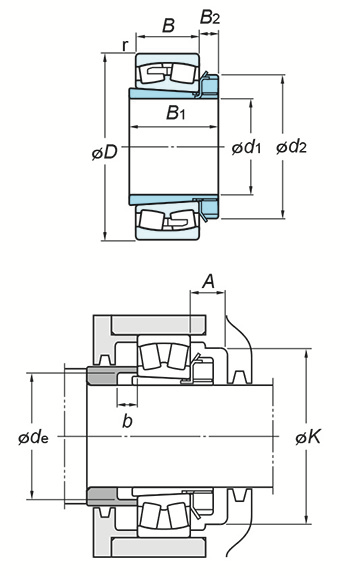

(Boundary dimensions ...etc)
d1
70 mm
B1
78 mm
d2
105 mm
B2
17 mm
B3
- mm
d
80 mm
D
170 mm
B
58 mm
r(min.)
2.1 mm
Basic load ratings : Cr
539 kN
Basic load ratings : C0r
521 kN
Limiting speeds(Grease lub.)
2900 min-1
Limiting speeds(Oil lub.)
3900 min-1
Constant e
0.35
Axial load factors : Y1
1.95
Axial load factors : Y2
2.90
Axial load factors : Y0
1.91
Mounting dimensions
A(min.)
25 mm
K(min.)
120 mm
sde(min.)
87 mm
b(min.)
5 mm
Refer.
(Refer.)Mass
7.64 kg
