Koyo 22324RZK+H2324X
(BRAND)：KOYO
(Availability)：In Stock
Specifications

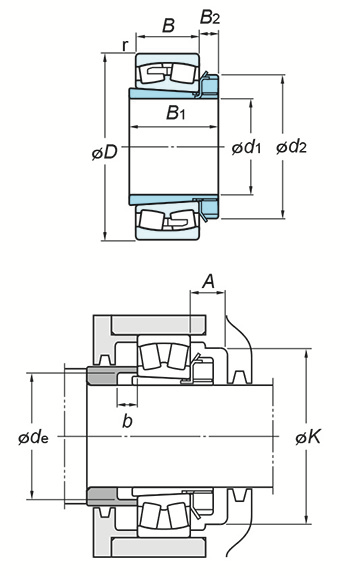

(Boundary dimensions ...etc)
d1
110 mm
B1
112 mm
d2
155 mm
B2
22 mm
B3
- mm
d
120 mm
D
260 mm
B
86 mm
r(min.)
3 mm
Basic load ratings : Cr
1120 kN
Basic load ratings : C0r
1130 kN
Limiting speeds(Grease lub.)
1800 min-1
Limiting speeds(Oil lub.)
2500 min-1
Constant e
0.33
Axial load factors : Y1
2.03
Axial load factors : Y2
3.02
Axial load factors : Y0
1.98
Mounting dimensions
A(min.)
33 mm
K(min.)
180 mm
sde(min.)
131 mm
b(min.)
7 mm
Refer.
(Refer.)Mass
25.6 kg
