Koyo 22334RHAK+H2334
(BRAND)：KOYO
(Availability)：In Stock
Specifications

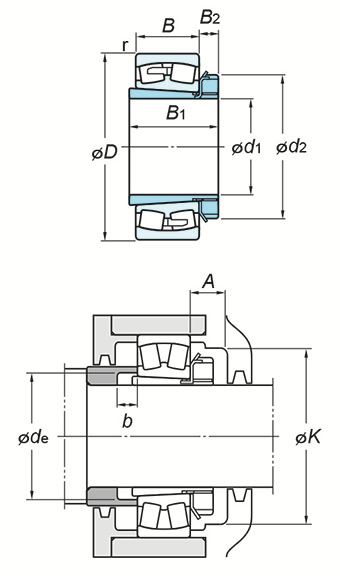

(Boundary dimensions ...etc)
d1
150 mm
B1
154 mm
d2
220 mm
B2
29 mm
B3
- mm
d
170 mm
D
360 mm
B
120 mm
r(min.)
4 mm
Basic load ratings : Cr
1990 kN
Basic load ratings : C0r
2200 kN
Limiting speeds(Grease lub.)
1000 min-1
Limiting speeds(Oil lub.)
1300 min-1
Constant e
0.35
Axial load factors : Y1
1.95
Axial load factors : Y2
2.91
Axial load factors : Y0
1.91
Mounting dimensions
A(min.)
40 mm
K(min.)
250 mm
sde(min.)
185 mm
b(min.)
8 mm
Refer.
(Refer.)Mass
66.8 kg
