Koyo 23224RZK+H2324X
(BRAND)：KOYO
(Availability)：In Stock
Specifications

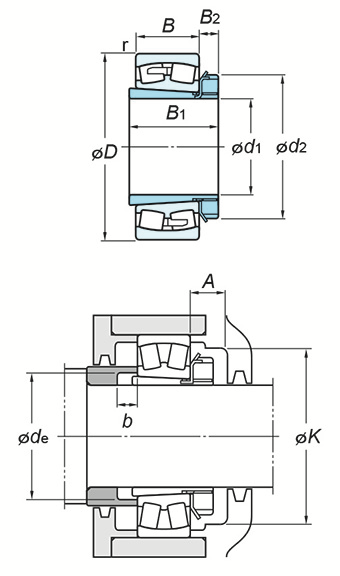

(Boundary dimensions ...etc)
d1
110 mm
B1
112 mm
d2
155 mm
B2
22 mm
B3
- mm
d
120 mm
D
215 mm
B
76 mm
r(min.)
2.1 mm
Basic load ratings : Cr
772 kN
Basic load ratings : C0r
956 kN
Limiting speeds(Grease lub.)
2100 min-1
Limiting speeds(Oil lub.)
2900 min-1
Constant e
0.34
Axial load factors : Y1
1.97
Axial load factors : Y2
2.94
Axial load factors : Y0
1.93
Mounting dimensions
A(min.)
33 mm
K(min.)
180 mm
sde(min.)
131 mm
b(min.)
17 mm
Refer.
(Refer.)Mass
15.1 kg
