Koyo 23236RHAK+H2336
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

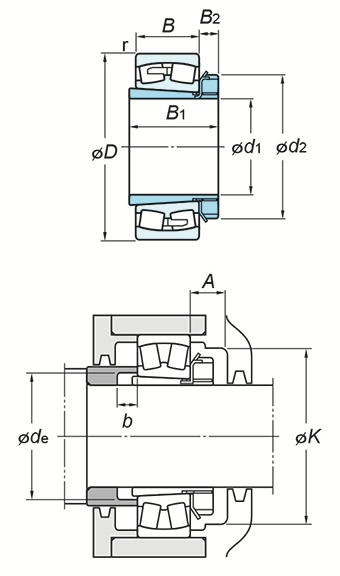

(Boundary dimensions ...etc)
d1
160 mm
B1
161 mm
d2
230 mm
B2
30 mm
B3
- mm
d
180 mm
D
320 mm
B
112 mm
r(min.)
4 mm
Basic load ratings : Cr
1660 kN
Basic load ratings : C0r
2170 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1400 min-1
Constant e
0.34
Axial load factors : Y1
1.97
Axial load factors : Y2
2.93
Axial load factors : Y0
1.92
Mounting dimensions
A(min.)
41 mm
K(min.)
260 mm
sde(min.)
195 mm
b(min.)
22 mm
Refer.
(Refer.)Mass
48.4 kg
