Koyo 23288RHAK+AHX3288
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

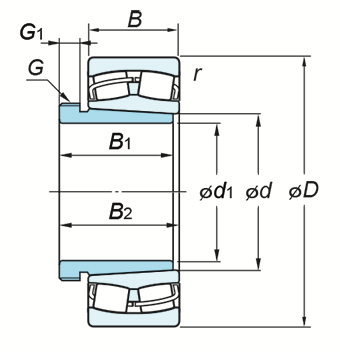

(Boundary dimensions ...etc)
d1
420 mm
B1
330 mm
B2
341 mm
G
Tr480�5 mm
G1
48 mm
d
440 mm
D
790 mm
B
280 mm
r(min.)
7.5 mm
Basic load ratings : Cr
8670 kN
Basic load ratings : C0r
12700 kN
Limiting speeds(Grease lub.)
300 min-1
Limiting speeds(Oil lub.)
390 min-1
Constant e
0.35
Axial load factors : Y1
1.93
Axial load factors : Y2
2.88
Axial load factors : Y0
1.89
Mounting dimensions
Refer.
(Refer.)Mass
627 kg
