Koyo 23288RK+AHX3288
(BRAND):KOYO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

23288RK+AHX3288

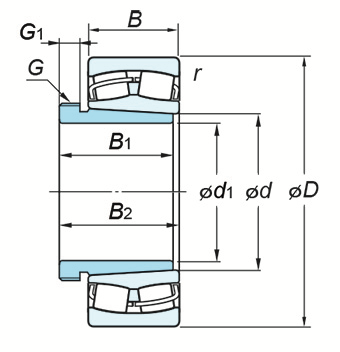

Specifications
(Boundary dimensions ...etc)

d1 420 mm
B1 330 mm
B2 341 mm
G Tr480�5 mm
G1 48 mm
d 440 mm
D 790 mm
B 280 mm
r(min.) 7.5 mm
Basic load ratings : Cr 8580 kN
Basic load ratings : C0r 12300 kN
Limiting speeds(Grease lub.) 300 min-1
Limiting speeds(Oil lub.) 400 min-1
Constant e 0.36
Axial load factors : Y1 1.86
Axial load factors : Y2 2.77
Axial load factors : Y0 1.82

Mounting dimensions

Refer.

(Refer.)Mass 678 kg
