Koyo 25FC17150
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

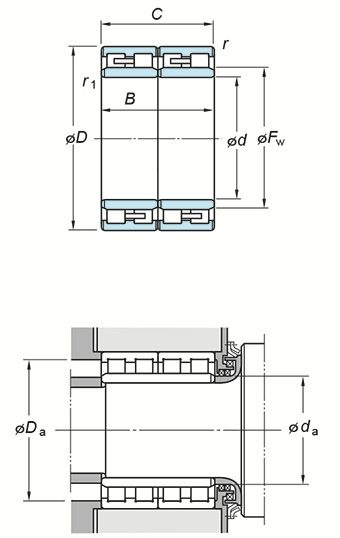

(Boundary dimensions ...etc)
d
127 mm
D
174.65 mm
B
150.812 mm
C
150.812 mm
Fw
139.5 mm
r(min.)
1.1 mm
r1(min.)
1.1 mm
Basic load ratings : Cr
677 kN
Basic load ratings : C0r
1300 kN
Fatigue load limit : Cu
170 kN
Mounting dimensions
da(min.)
134 mm
Da(max.)
167 mm
da(min.)
163 mm
ra(max.)
1 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
10.5 kg
