Koyo 30FC21150
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

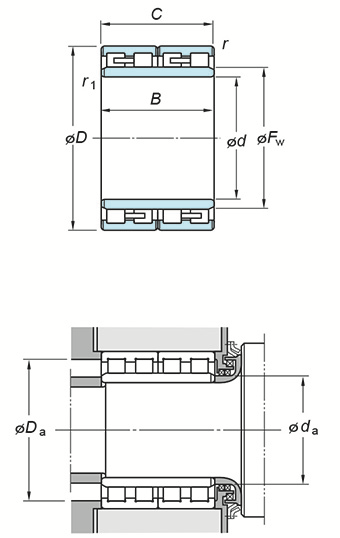

(Boundary dimensions ...etc)
d
150 mm
D
210 mm
B
150 mm
C
150 mm
Fw
165 mm
r(min.)
2 mm
r1(min.)
2 mm
Basic load ratings : Cr
937 kN
Basic load ratings : C0r
1780 kN
Fatigue load limit : Cu
231 kN
Mounting dimensions
da(min.)
160 mm
Da(max.)
200 mm
da(min.)
195 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
15.9 kg
