Koyo 3204
(BRAND)：KOYO
(Availability)：In Stock

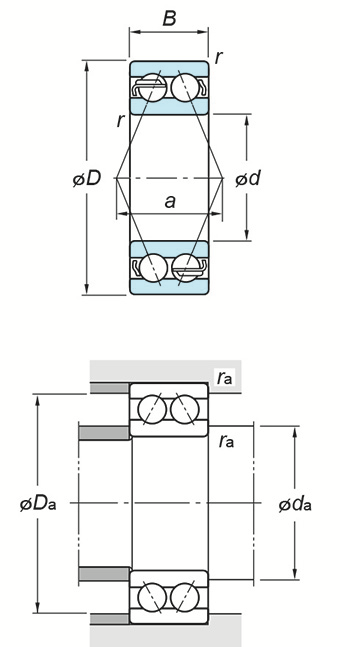

Specifications
(Boundary dimensions ...etc)
d
20 mm
D
47 mm
B
20.6 mm
r(min.)
1 mm
Basic load ratings : Cr
21.5 kN
Basic load ratings : C0r
15.0 kN
Fatigue load limit : Cu
0.770 kN
Limiting speeds(Grease lub.)
9000 min-1
Limiting speeds(Oil lub.)
12000 min-1
Load center spread : a
31.5 mm
Mounting dimensions
da(min.)
26 mm
da(max.)
- mm
Da(max.)
41.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.170 kg
