Koyo 3209
(BRAND)：KOYO
(Availability)：In Stock
Specifications

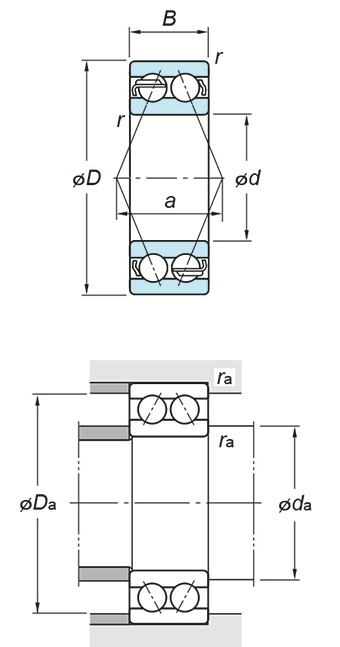

(Boundary dimensions ...etc)
d
45 mm
D
85 mm
B
30.2 mm
r(min.)
1.1 mm
Basic load ratings : Cr
56.8 kN
Basic load ratings : C0r
51.4 kN
Fatigue load limit : Cu
2.65 kN
Limiting speeds(Grease lub.)
4600 min-1
Limiting speeds(Oil lub.)
6100 min-1
Load center spread : a
56.3 mm
Mounting dimensions
da(min.)
52 mm
da(max.)
- mm
Da(max.)
78 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.710 kg
