Koyo 3219
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

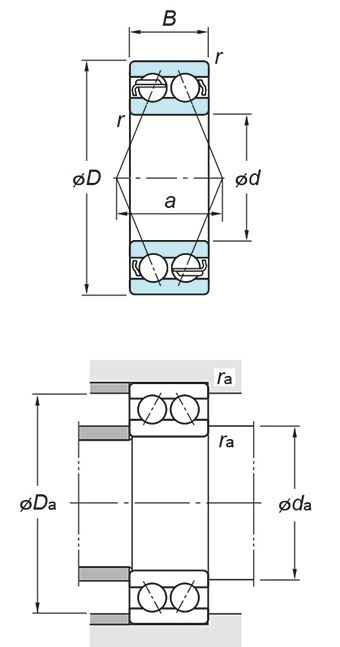

(Boundary dimensions ...etc)
d
95 mm
D
170 mm
B
55.6 mm
r(min.)
2.1 mm
Basic load ratings : Cr
189 kN
Basic load ratings : C0r
193 kN
Fatigue load limit : Cu
8.65 kN
Limiting speeds(Grease lub.)
2200 min-1
Limiting speeds(Oil lub.)
3000 min-1
Load center spread : a
110.6 mm
Mounting dimensions
da(min.)
107 mm
da(max.)
- mm
Da(max.)
158 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
5.00 kg
