Koyo 32332
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

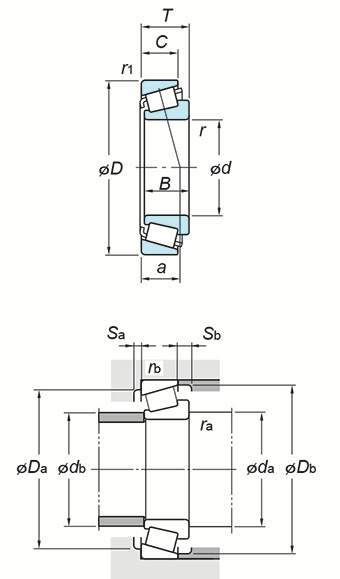

(Boundary dimensions ...etc)
d
160 mm
D
340 mm
T
121 mm
B
114 mm
C
95 mm
r(min.)
5 mm
r1(min.)
4 mm
Basic load ratings : Cr
1530 kN
Basic load ratings : C0r
1720 kN
Fatigue load limit : Cu
187 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1400 min-1
Load center spread : a
83.0 mm
Constant e
0.35
Axial load factors : Y1
1.73
Axial load factors : Y0
0.95
Mounting dimensions
da(min.)
182 mm
db(max.)
200 mm
Da(max.)
322 mm
da(min.)
277 mm
db(min.)
316 mm
Sa(min.)
10 mm
Sb(min.)
18 mm
ra(max.)
4 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
47.9 kg
