Koyo 32930JR
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

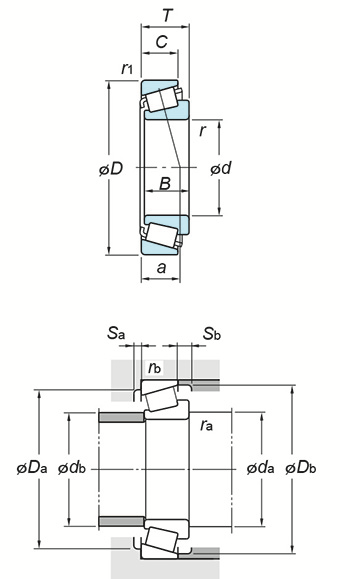

(Boundary dimensions ...etc)
d
150 mm
D
210 mm
T
38 mm
B
38 mm
C
30 mm
r(min.)
2.5 mm
r1(min.)
2 mm
Basic load ratings : Cr
358 kN
Basic load ratings : C0r
536 kN
Fatigue load limit : Cu
72.1 kN
Limiting speeds(Grease lub.)
1600 min-1
Limiting speeds(Oil lub.)
2100 min-1
Load center spread : a
36.1 mm
Constant e
0.33
Axial load factors : Y1
1.83
Axial load factors : Y0
1.01
Mounting dimensions
da(min.)
162 mm
db(max.)
163 mm
Da(max.)
200 mm
da(min.)
194 mm
db(min.)
202 mm
Sa(min.)
7 mm
Sb(min.)
8 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
3.96 kg
