Koyo 32FC23170B
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

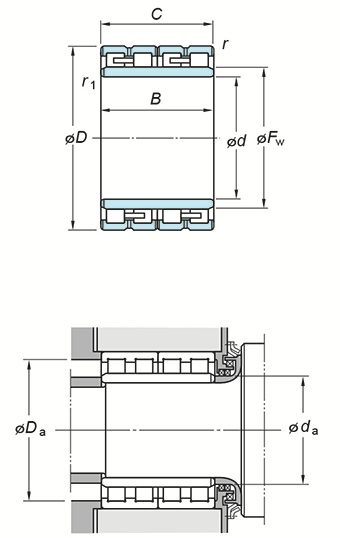

(Boundary dimensions ...etc)
d
160 mm
D
230 mm
B
168 mm
C
168 mm
Fw
179 mm
r(min.)
2 mm
r1(min.)
2 mm
Basic load ratings : Cr
1200 kN
Basic load ratings : C0r
2210 kN
Fatigue load limit : Cu
276 kN
Mounting dimensions
da(min.)
170 mm
Da(max.)
220 mm
da(min.)
215 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
22.6 kg
