Koyo 3316
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

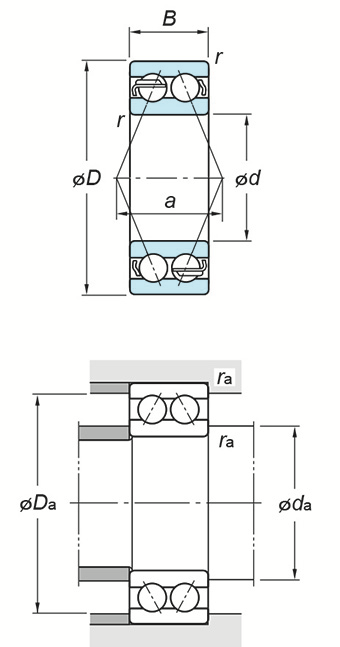

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
B
68.3 mm
r(min.)
2.1 mm
Basic load ratings : Cr
230 kN
Basic load ratings : C0r
213 kN
Fatigue load limit : Cu
9.85 kN
Limiting speeds(Grease lub.)
2400 min-1
Limiting speeds(Oil lub.)
3100 min-1
Load center spread : a
113.1 mm
Mounting dimensions
da(min.)
92 mm
da(max.)
- mm
Da(max.)
158 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
6.93 kg
