Koyo 3321
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

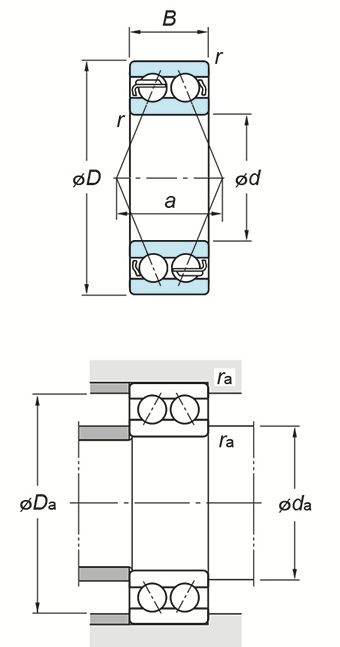

(Boundary dimensions ...etc)
d
105 mm
D
225 mm
B
87.3 mm
r(min.)
3 mm
Basic load ratings : Cr
331 kN
Basic load ratings : C0r
354 kN
Fatigue load limit : Cu
18.5 kN
Limiting speeds(Grease lub.)
1800 min-1
Limiting speeds(Oil lub.)
2300 min-1
Load center spread : a
148.1 mm
Mounting dimensions
da(min.)
119 mm
da(max.)
- mm
Da(max.)
211 mm
ra(max.)
2.5 mm
Refer.
(Refer.)Mass
15.6 kg
