Koyo 33211JR
(BRAND)：KOYO
(Availability)：In Stock
Specifications

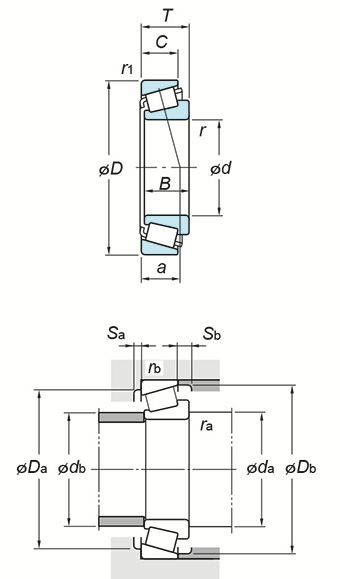

(Boundary dimensions ...etc)
d
55 mm
D
100 mm
T
35 mm
B
35 mm
C
27 mm
r(min.)
2 mm
r1(min.)
1.5 mm
Basic load ratings : Cr
178 kN
Basic load ratings : C0r
189 kN
Fatigue load limit : Cu
28.9 kN
Limiting speeds(Grease lub.)
3900 min-1
Limiting speeds(Oil lub.)
5200 min-1
Load center spread : a
25.3 mm
Constant e
0.40
Axial load factors : Y1
1.50
Axial load factors : Y0
0.83
Mounting dimensions
da(min.)
65 mm
db(max.)
62 mm
Da(max.)
90 mm
da(min.)
85 mm
db(min.)
96 mm
Sa(min.)
6 mm
Sb(min.)
8 mm
ra(max.)
2 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
1.18 kg
