Koyo 34FC24156B
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

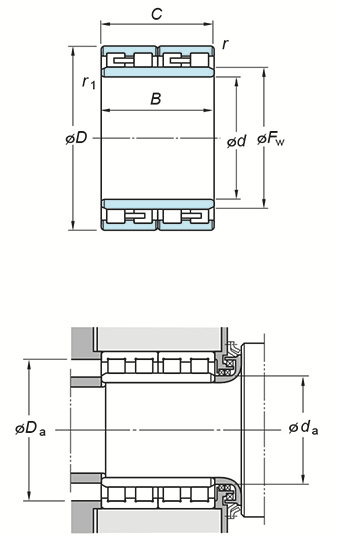

(Boundary dimensions ...etc)
d
170 mm
D
240 mm
B
156 mm
C
156 mm
Fw
189 mm
r(min.)
2 mm
r1(min.)
2 mm
Basic load ratings : Cr
1140 kN
Basic load ratings : C0r
2100 kN
Fatigue load limit : Cu
264 kN
Mounting dimensions
da(min.)
180 mm
Da(max.)
230 mm
da(min.)
225 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
21.8 kg
