Koyo 36FC26150
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

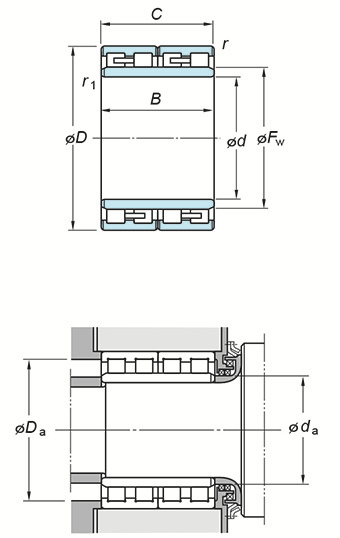

Specifications
(Boundary dimensions ...etc)
d
178 mm
D
258.75 mm
B
150 mm
C
150 mm
Fw
199 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Basic load ratings : Cr
1180 kN
Basic load ratings : C0r
2070 kN
Fatigue load limit : Cu
261 kN
Mounting dimensions
da(min.)
187 mm
Da(max.)
250 mm
da(min.)
239 mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
25.8 kg
