Koyo 4208
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

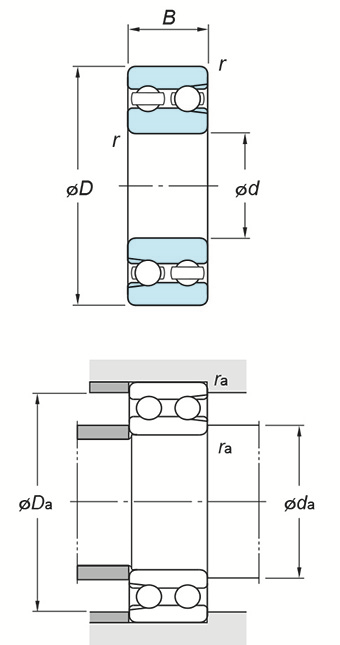

(Boundary dimensions ...etc)
d
40 mm
D
80 mm
B
23 mm
r(min.)
1.1 mm
Basic load ratings : Cr
42.2 kN
Basic load ratings : C0r
42.4 kN
Fatigue load limit : Cu
2.50 kN
factor : f0
15.5
Limiting speeds(Grease lub.)
4700 min-1
Limiting speeds(Oil lub.)
6300 min-1
Mounting dimensions
Da(max.)
73.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.558 kg
