Koyo 4308
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

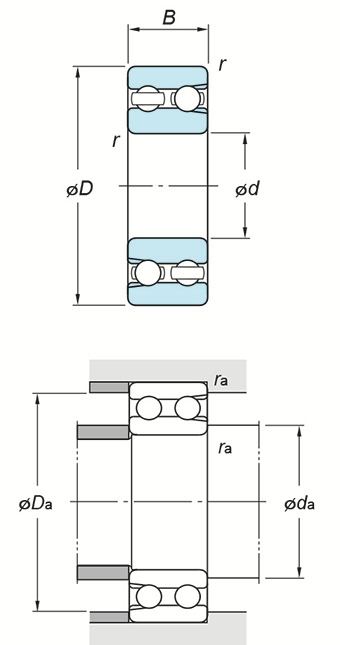

(Boundary dimensions ...etc)
d
40 mm
D
90 mm
B
33 mm
r(min.)
1.5 mm
Basic load ratings : Cr
57.5 kN
Basic load ratings : C0r
48.8 kN
Fatigue load limit : Cu
3.25 kN
factor : f0
14.7
Limiting speeds(Grease lub.)
4600 min-1
Limiting speeds(Oil lub.)
6100 min-1
Mounting dimensions
Da(max.)
82 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
1.01 kg
