Koyo 44FC32210-1

Rolling mill roll neck bearings

(BRAND)：KOYO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

44FC32210-1

Rolling mill roll neck bearings

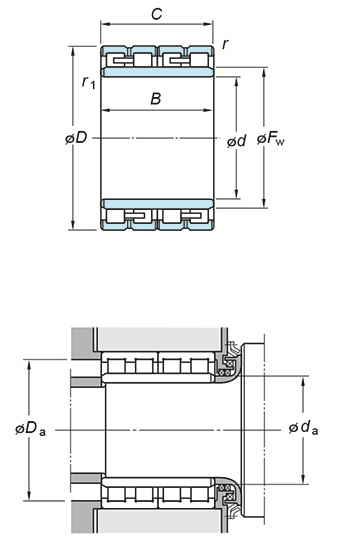

Specifications
(Boundary dimensions ...etc)

d 220 mm

D 320 mm

B 210 mm

C 210 mm

Fw 248 mm

r(min.) 2.1 mm

r1(min.) 2.1 mm

Basic load ratings : Cr 1950 kN

Basic load ratings : C0r 3740 kN

Fatigue load limit : Cu 430 kN

Mounting dimensions

da(min.) 232 mm

Da(max.) 308 mm

da(min.) 296 mm

ra(max.) 2 mm

rb(max.) 2 mm

Refer.

(Refer.)Mass 56.7 kg
