Koyo 452/530
(BRAND)：KOYO
(Availability)：In Stock
Specifications

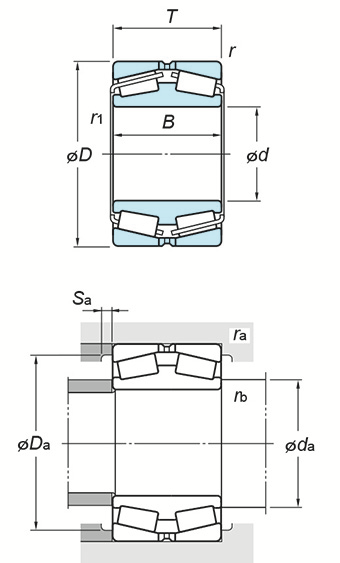

(Boundary dimensions ...etc)
d
530 mm
D
780 mm
B
185 mm
T
185 mm
r(min.)
6 mm
r1(min.)
6 mm
Basic load ratings : Cr
5100 kN
Basic load ratings : C0r
8870 kN
Fatigue load limit : Cu
788 kN
Limiting speeds(Grease lub.)
- min-1
Limiting speeds(Oil lub.)
- min-1
Constant e
0.39
Axial load factors : Y2
1.74
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Mounting dimensions
da(max.)
591 mm
Da(max.)
752 mm
Da(min.)
710 mm
Sa(min.)
8 mm
ra(max.)
5 mm
rb(max.)
5 mm
Refer.
(Refer.)Mass
306 kg
