Koyo 45296
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

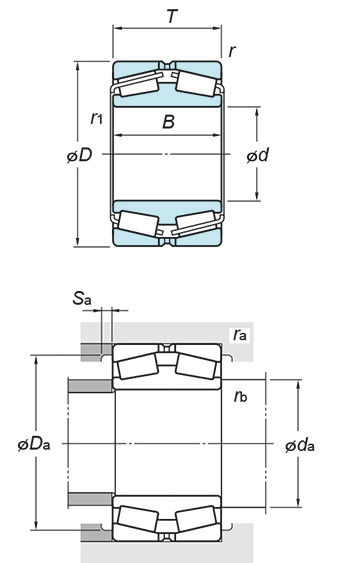

(Boundary dimensions ...etc)
d
480 mm
D
700 mm
B
165 mm
T
165 mm
r(min.)
6 mm
r1(min.)
6 mm
Basic load ratings : Cr
3830 kN
Basic load ratings : C0r
6710 kN
Fatigue load limit : Cu
614 kN
Limiting speeds(Grease lub.)
260 min-1
Limiting speeds(Oil lub.)
350 min-1
Constant e
0.40
Axial load factors : Y2
1.68
Axial load factors : Y3
2.50
Axial load factors : Y0
1.64
Mounting dimensions
da(max.)
531 mm
Da(max.)
672 mm
Da(min.)
625 mm
Sa(min.)
6 mm
ra(max.)
5 mm
rb(max.)
5 mm
Refer.
(Refer.)Mass
215 kg
