Koyo 453/670
(BRAND)：KOYO
(Availability)：In Stock
Specifications

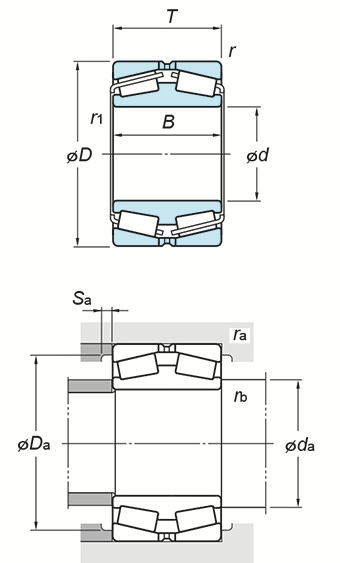

(Boundary dimensions ...etc)
d
670 mm
D
1090 mm
B
336 mm
T
336 mm
r(min.)
7.5 mm
r1(min.)
7.5 mm
Basic load ratings : Cr
10500 kN
Basic load ratings : C0r
22800 kN
Fatigue load limit : Cu
kN
Limiting speeds(Grease lub.)
- min-1
Limiting speeds(Oil lub.)
- min-1
Constant e
0.39
Axial load factors : Y2
1.74
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Mounting dimensions
da(max.)
772 mm
Da(max.)
1054 mm
Da(min.)
967 mm
Sa(min.)
9 mm
ra(max.)
6 mm
rb(max.)
6 mm
Refer.
(Refer.)Mass
1260 kg
