45376
MORE +
CLOSE +
/wp-content/uploads/2025/Tapered-Roller-Bearings.jpg
(BRAND):KOYO
(Availability):In Stock

Detailed data of

45376

Specifications
(Boundary dimensions ...etc)

d 380 mm
D 620 mm
B 194 mm
T 194 mm
r(min.) 5 mm
r1(min.) 6 mm
Basic load ratings : Cr 3860 kN
Basic load ratings : C0r 6360 kN
Fatigue load limit : Cu 606 kN
Limiting speeds(Grease lub.) 340 min-1
Limiting speeds(Oil lub.) 450 min-1
Constant e 0.32
Axial load factors : Y2 2.12
Axial load factors : Y3 3.15
Axial load factors : Y0 2.07

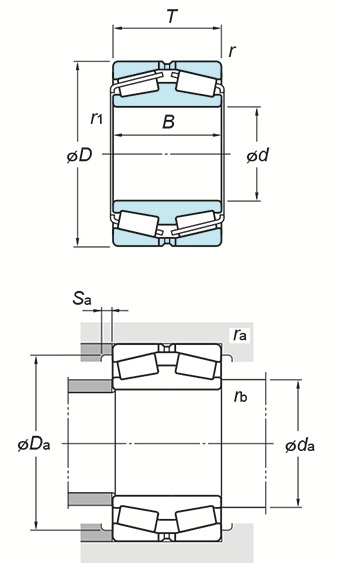

Mounting dimensions

da(max.) 445 mm
Da(max.) 598 mm
Da(min.) 545 mm
Sa(min.) 6 mm
ra(max.) 4 mm
rb(max.) 5 mm

Refer.

(Refer.)Mass 234 kg
