Koyo 462/600A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

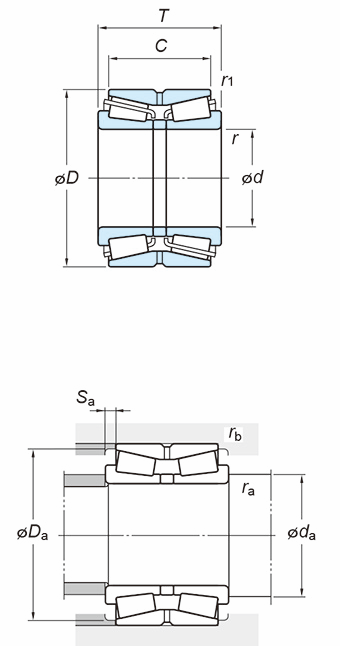

(Boundary dimensions ...etc)
d
600 mm
D
870 mm
T
250 mm
C
200 mm
r(min.)
6 mm
r1(min.)
3 mm
Basic load ratings : Cr
6680 kN
Basic load ratings : C0r
12600 kN
Fatigue load limit : Cu
1070 kN
Limiting speeds(Grease lub.)
- min-1
Limiting speeds(Oil lub.)
- min-1
Constant e
0.33
Axial load factors : Y2
2.03
Axial load factors : Y3
3.02
Axial load factors : Y0
1.98
Mounting dimensions
da(min.)
628 mm
Da(min.)
856 mm
Sa(min.)
25 mm
ra(max.)
5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
466 kg
