Koyo 462/900A
(BRAND)：KOYO
(Availability)：In Stock
Specifications

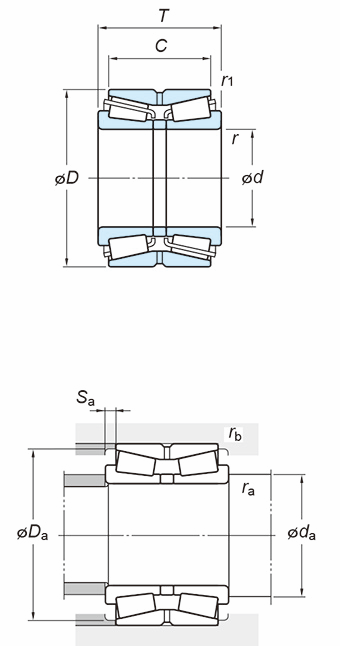

(Boundary dimensions ...etc)
d
900 mm
D
1280 mm
T
350 mm
C
280 mm
r(min.)
7.5 mm
r1(min.)
4 mm
Basic load ratings : Cr
10200 kN
Basic load ratings : C0r
26000 kN
Fatigue load limit : Cu
kN
Limiting speeds(Grease lub.)
- min-1
Limiting speeds(Oil lub.)
- min-1
Constant e
0.39
Axial load factors : Y2
1.74
Axial load factors : Y3
2.59
Axial load factors : Y0
1.70
Mounting dimensions
da(min.)
936 mm
Da(min.)
1262 mm
Sa(min.)
35 mm
ra(max.)
6 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
1360 kg
