(BRAND):KOYO
(Availability):In Stock

Detailed data of

46268

Specifications

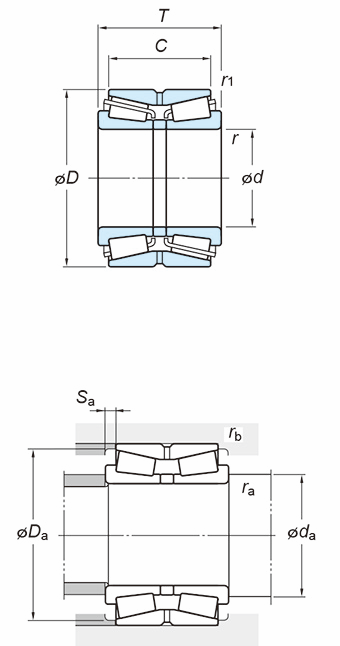

(Boundary dimensions ...etc)

d 340 mm
D 520 mm
T 133 mm
C 118 mm
r(min.) 6 mm
r1(min.) 2 mm
Basic load ratings : Cr 1940 kN
Basic load ratings : C0r 3070 kN
Fatigue load limit : Cu 314 kN
Limiting speeds(Grease lub.) 420 min-1
Limiting speeds(Oil lub.) 570 min-1
Constant e 0.32
Axial load factors : Y2 2.12
Axial load factors : Y3 3.15
Axial load factors : Y0 2.07

Mounting dimensions

da(min.) 368 mm
Da(min.) 489 mm
Sa(min.) 7.5 mm
ra(max.) 5 mm
rb(max.) 2 mm

Refer.

(Refer.)Mass 95.3 kg
